Engines Engine Program: Power Advantage+

Loc.
Make
Model
Serial#
TSOH


L
Pratt & Whitney
PW545C
PCE-DF0157
783


R
PCE-DF0158
1221


Power Advantage+ Engine Program Coverage on Both EnginesAPU RE100 (XL), S/N: P-161, Covered by Aux Advantage

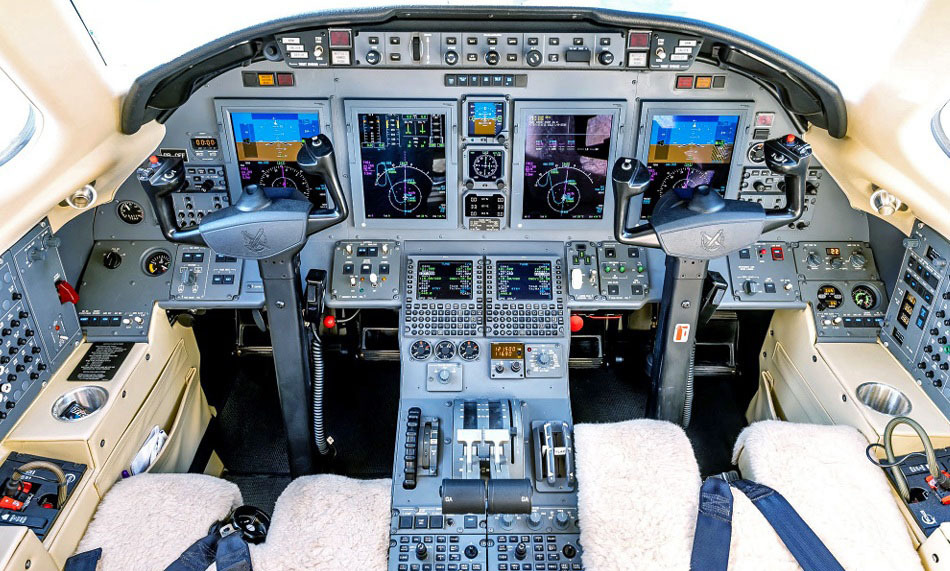

Collins Pro Line 21 with Dual 8 x10 PFDs and Dual 8 x10 MFDsCollins APS-3000 Autopilot w/Dual FGC-3000 Flight Guidance ComputersDual Collins AHC-3000 AHRSDual Collins ADC-3000 Digital ADCsSingle Collins IFIS-5000 w/FSU-5010 FSUDual Collins FMS-3000 FMSCollins GPS 4000S 12-Channel GPSDual Collins NAV-4500 NAVsDual Collins VHF-4000 COMMsDual Collins TDR-94D Modes S (D) TXPRsSingle Collins DME-4000 DMESingle Collins ALT-4000 Radio AltimeterCollins TWR-850 Radar w/TurbulenceBF Goodrich WX-1000E StormscopeCollins TCAS-4000 w/Change 7Precise Flight Pulselite (TCAS Interfaced)Honeywell Mark V EGPWS (Class A)Heads Up Tech Broadcast XM WeatherIntegrated Electronic ChecklistJeppesen Electronic ChartsL-3 GH-3000 Electronic Standby Inst SystemL-3 EHSI-4000 Electronic Standby HSI (EHSI)Standby Engine Indicator w/N1, N2, & ITTArtex C406-N ELT w/NAV InterfaceL-3 FA2100 Cockpit Voice RecorderMaintenance Diagnostic ComputerADS-B Out, WAAS, LPV

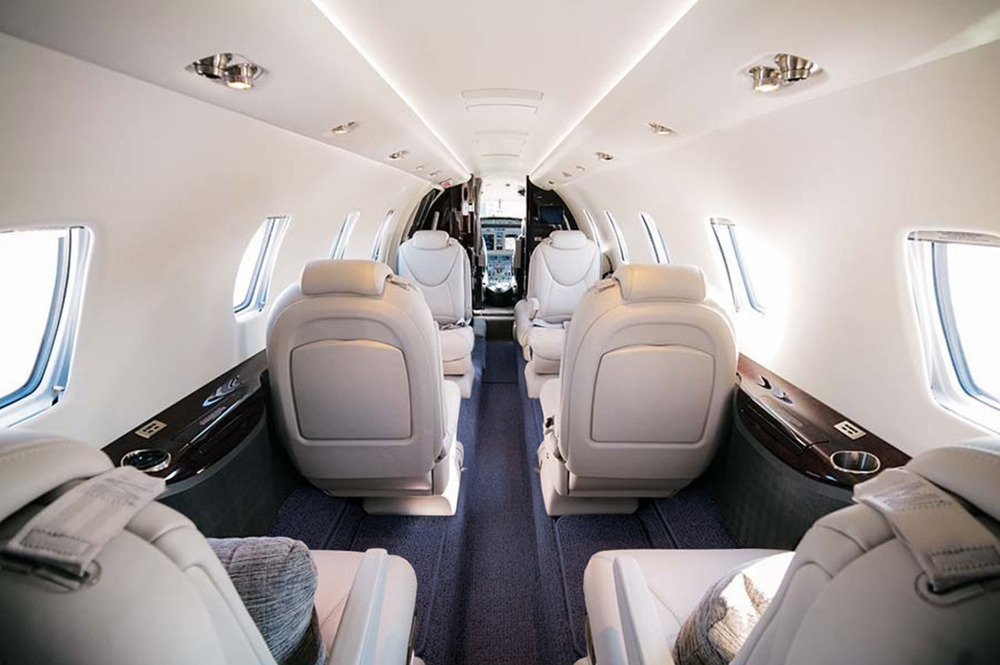

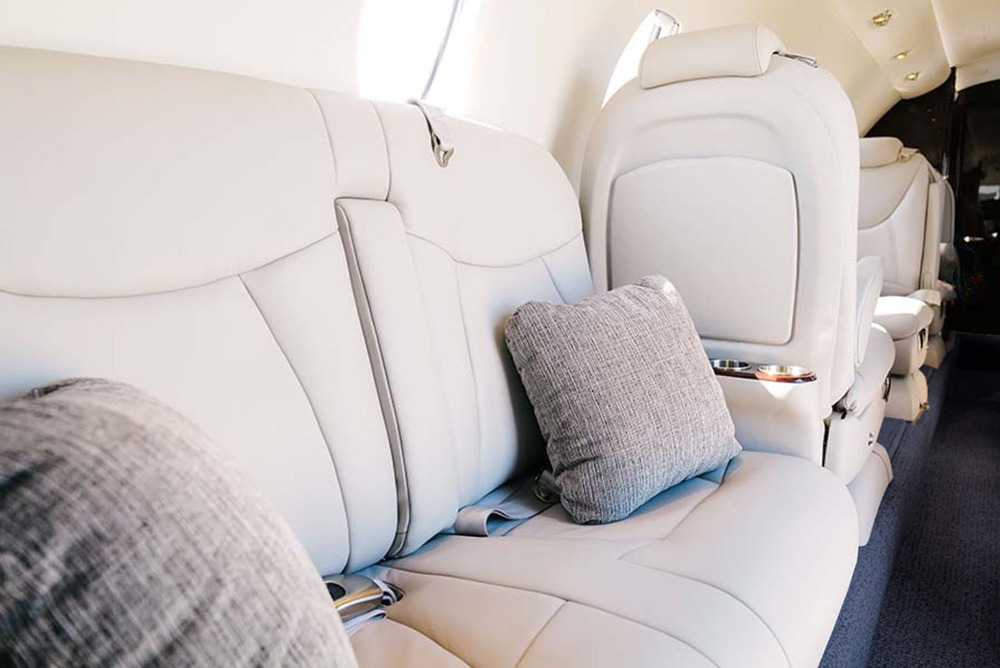

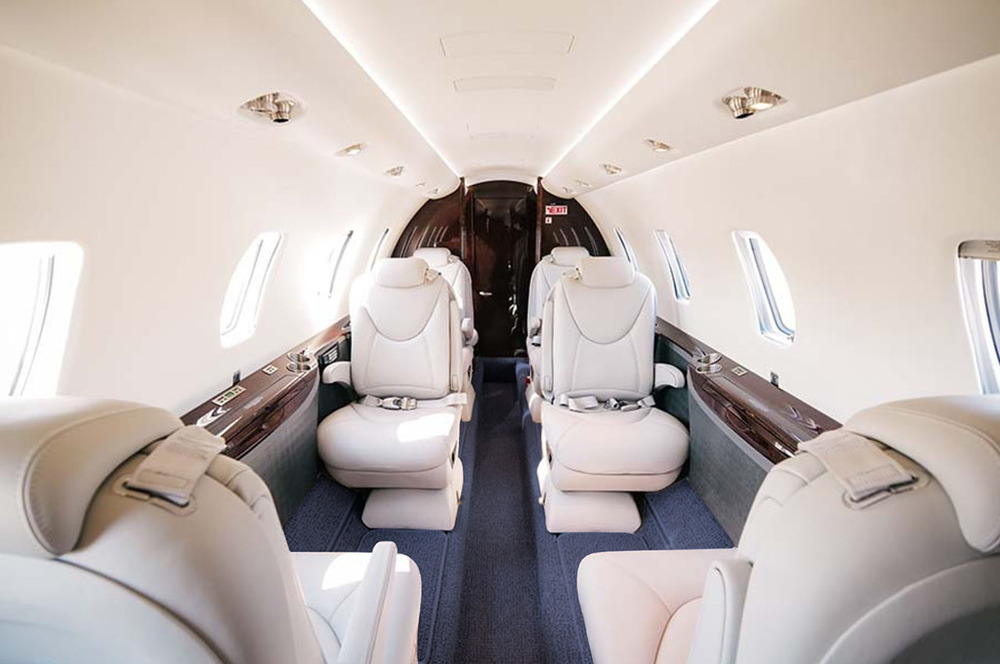

Number of Passengers Nine (9)Forward Cabin Configuration Two (2) Place Sid-Facing DivanMid Cabin Configuration Four (4) Place Club ConfigurationAft Cabin Configuration Two (2) Forward Facing Club SeatsSingle (1) Belted Side-Facing Passenger Seatlocated Opposite Side of the Flushing ToiletLavatory Location(s) Aft - Non-belted, Flushing, Externally Serviceable ToiletLast Refurbished 2023Notes: Light Gray leather seats with color coordinated sidewalls and headliner. The cabin also includes three 110V outlets, wood Veneer Cabinetry, and a Rosenview LX moving map system with a 10.4 monitor display in the RH fwd cabinet.

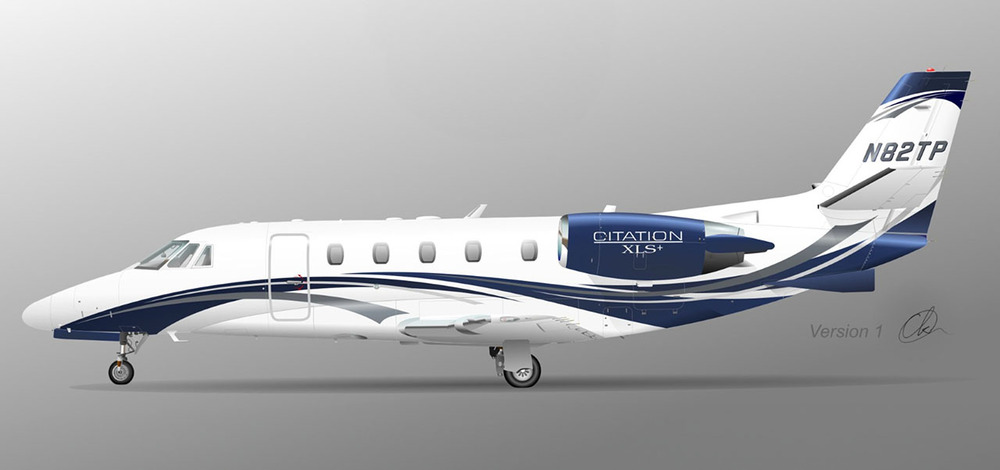

Base Paint Color Matterhorn WhiteStripe Paint Colors Silver, Gray, & Blue Metallic StripesLast Painted 2025

Hangared: YesComplete Logs: Yes

Additional Equipment:
ADS-B OutWAASLPV
