Airframe Landings: 4,067


Engines Engine Program: Enrolled on MSP Gold

Loc.
Make
Model
Serial#
TSN
CSN


L
Honeywell
TFE 731-60-1C
P-112396
8824
4016


C
P-112397
8833
3999


R
P-112398
8591
3849


APU Honeywell GTCP 36-150F, S/N: P-406, TSN: 4,577 Hrs., Program: Honeywell MSP Gold

Avionics Package: Honeywell Primus Elite (DU-875 Upgrade)Flight Director: Honeywell Primus 2000 (5-Tube EFIS)Autopilot: Honeywell IC-810 IAC w/ AutothrottleAir Data Computer: Dual Honeywell AZ-840Communication: Triple Collins VHF-422C w/ 8.33 SpacingNavigation: Dual Collins VIR-432 w/ FM ImmunityDME: Dual Collins DME-442ADF: Dual Collins ADF-462Transponder: Dual Collins TDR-94D w/ ADS-B Out v2 (DO-260B Compliant)Radio Altimeter: Dual Honeywell AA-300Color Radar: Honeywell Primus 880 w/ Dual ControllersInertial Reference System (IRS): Triple Honeywell Laseref IVFlight Management System (FMS): Triple Honeywell NZ-2000 (6.1.1 software)Control Display Units (CDU): Triple Honeywell CD-820GPS: Dual HG2021 KB02 SBAS GLSSU (WAAS)HF: Dual Collins HF-9034A with SELCALData Loader: Honeywell DL-1000

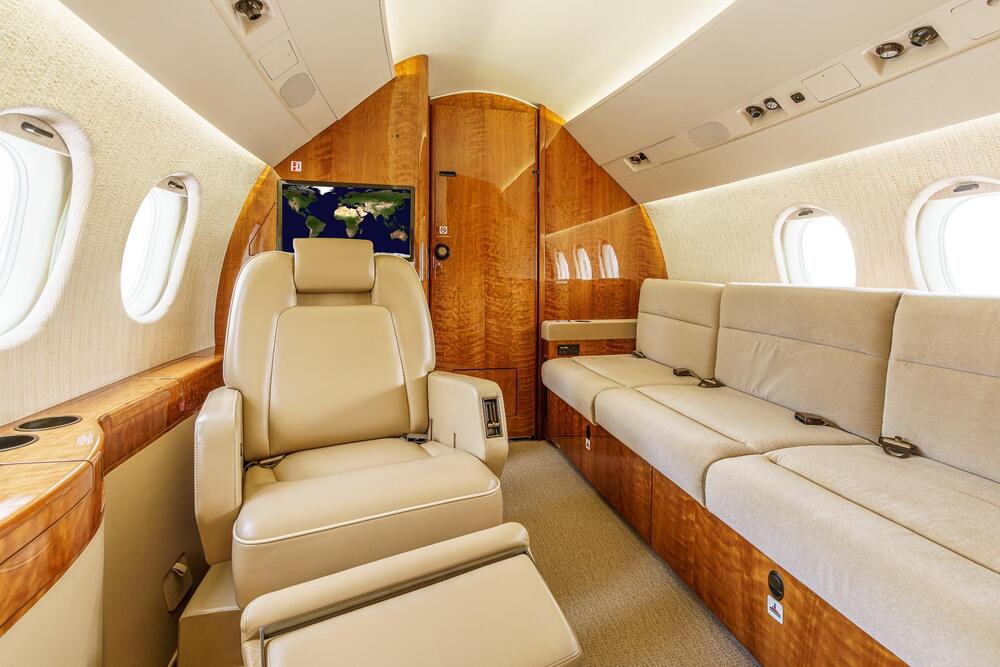

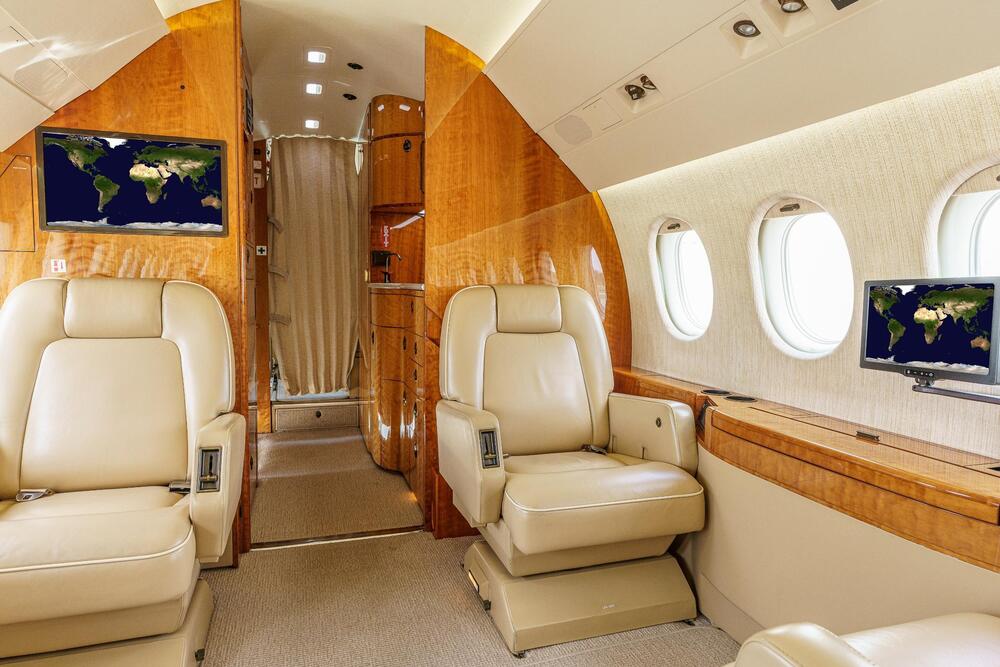

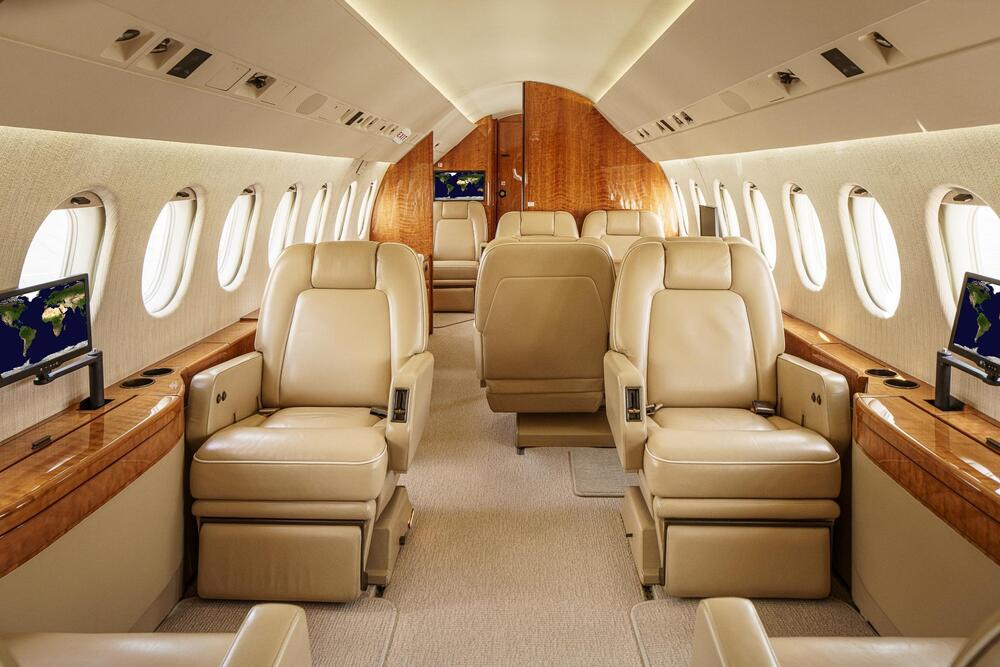

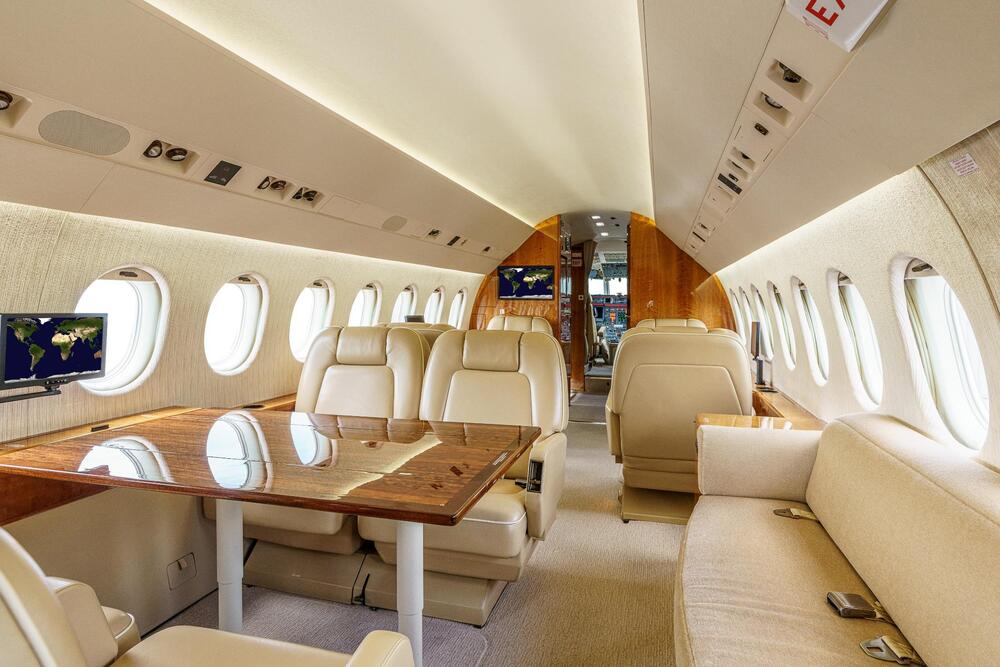

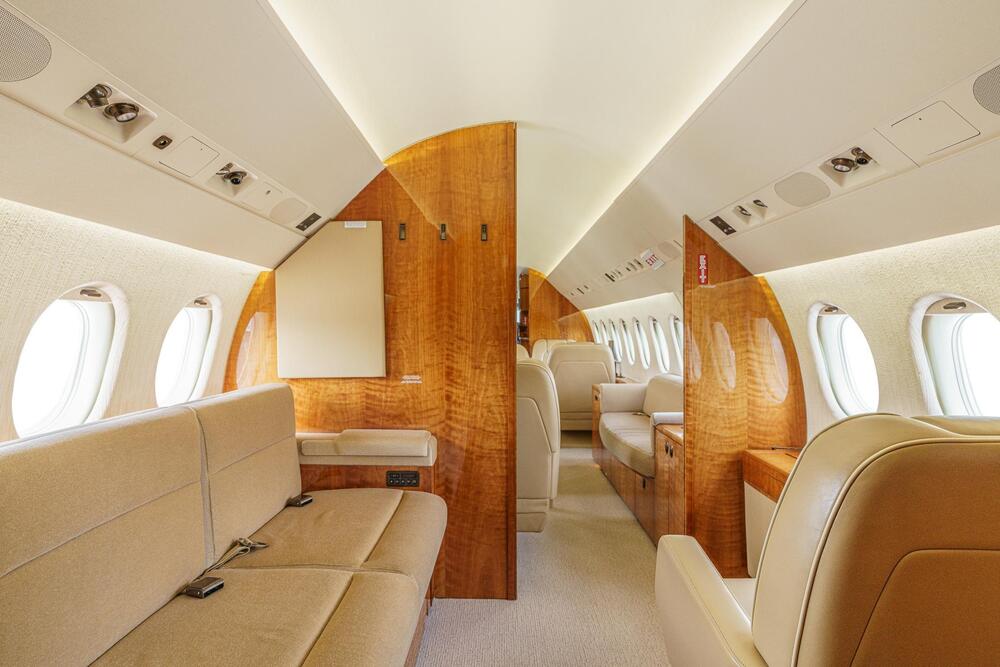

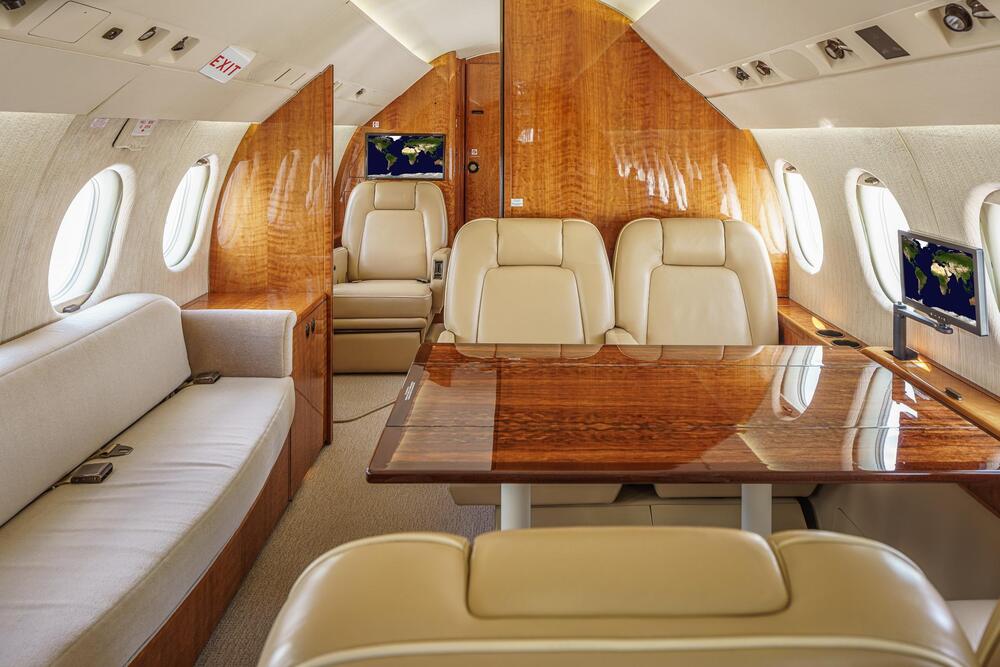

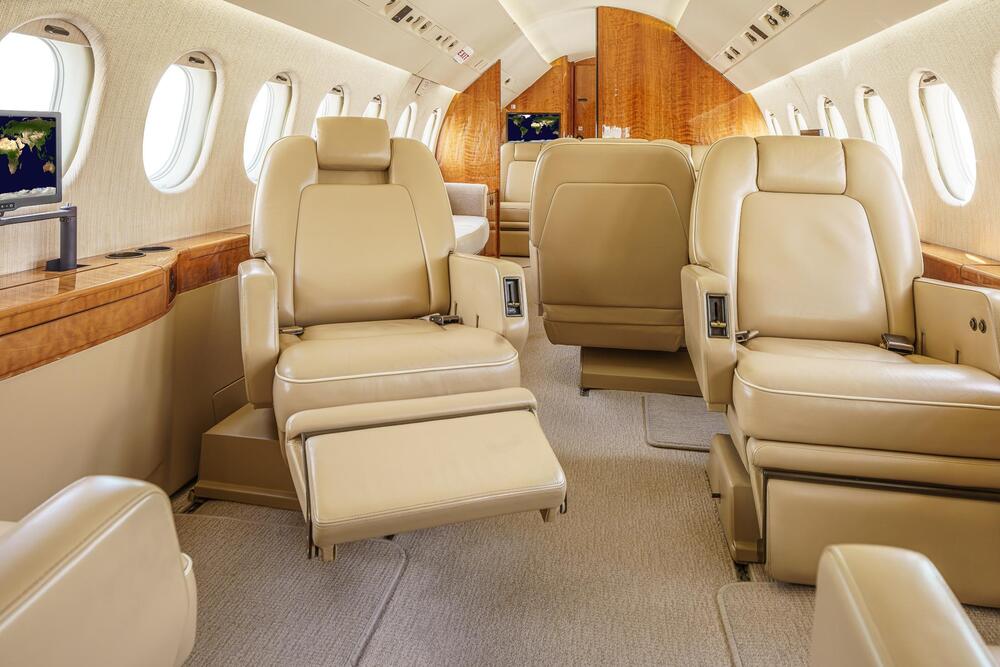

Twelve (12) passenger fireblocked interior with a forward, four-place club grouping with two pull-out tables; a left-hand, mid-cabin, four-place conference grouping opposite a settee (not certified for occupancy during takeoff and landing) with dual end cabinets; and an aft, left-hand, three-place divan (berthable) opposite a single chair with work station.The chairs are covered with Beige leather, and the settee and divan (electrically berthable) are covered with Beige fabric. Lower sidewalls are covered with beige ultra-leather; the headliner and PSU panels are off-white ultra-suede; window reveals, shades and upper sidewalls are covered with White and Beige textured fabric. The carpet is beige wool (installed May 2019); woodwork on the bulkheads, cabinets and drink rails is Medium- light fig cherry with a high gloss finish; and all tables are dark fig tiger wood. The metal hardware is antique Brass with a Satin finish. A forward pocket door separates the galley from the cabin. A solid bulkhead with an electrically activated curtain separates the mid and aft cabins.The entertainment center, which is stored in the LH galley annex, includes a Rosen dual disc Blu-Ray player, Honeywell Jetmap II w/ Passenger Briefer and two (2) Rosen 22 High Definition Widescreen LCD cabin monitors (one flush-mounted in the forward, left-hand bulkhead, and the other flush-mounted in the aft, right-hand bulkhead) with an IR remote. There are also three (3) 12 Rosen High Definition widescreen plug-in monitors, with receptacles located at each of the seat groups. Three (3) Honeywell PCU-200C touchscreen controllers are installed (1 in galley and 2 in the forward cabin). An HDMI/RCA auxiliary input panel is located at the aft cabin workstation. PC Ethernet plugs are located throughout the cabin. Honeywell C-Series Cabin Management System Refresh completed in December 2013 by Dassault Wilmington.A 36 right-hand, forward galley houses a TIA WaveJet microwave oven and coffee maker. A 23 left-hand, forward galley annex houses a TIA convection oven and a gasper-cooled storage cabinet. Aft passenger lavatory with opposing vanity, and right-hand crew lavatory forward of the galley. A large side-facing ERDA jumpseat is located just aft of the co-pilot seat. Interior refurbishment completed December 2013 by Dassault Wilmington.

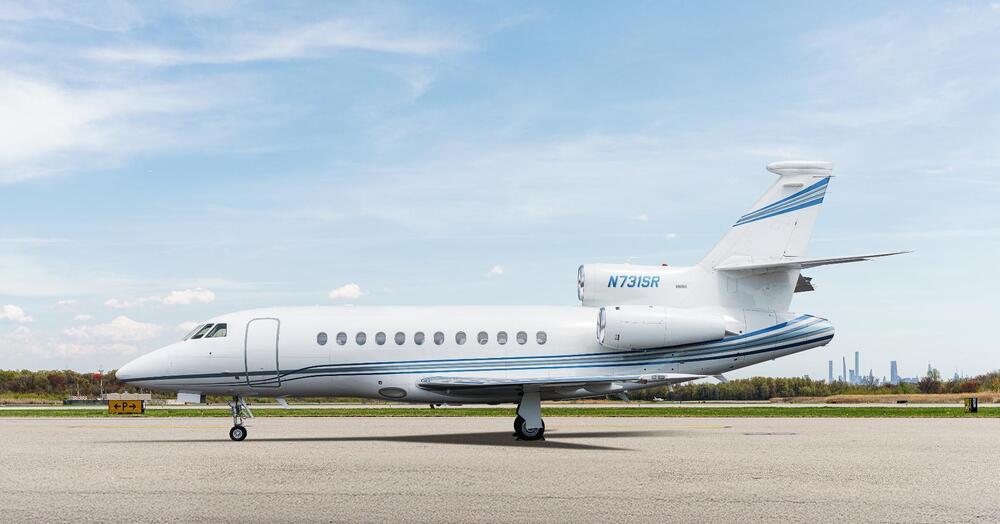

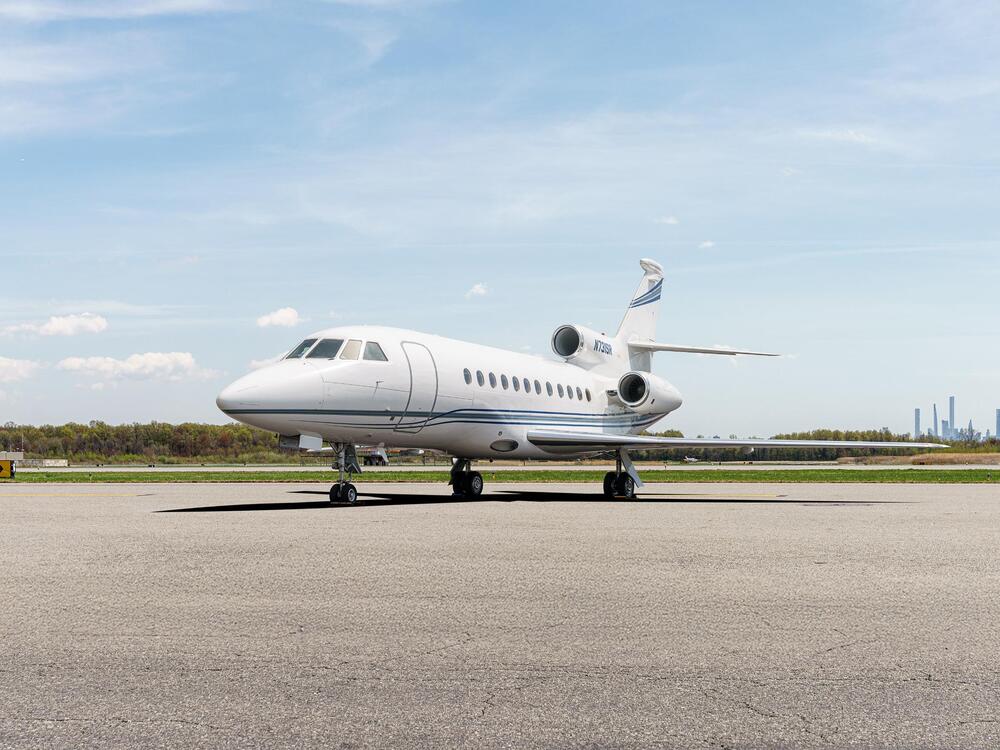

Strip & New Paint Currently in Progress at StandardAero - SpringfieldOverall Matterhorn White (No Stripes).

Certificate of Airworthiness: June 15, 2001Airframe Enrolled on MSP Avionics (HAAP) & Collins Avionics Service Plan (CASP)Maintenance Tracked by CAMP SystemsCurrently Operated Part 135Aircraft is undergoing Inspections at StandardAero - Springfield, IL (SPI)Records are Located in Teterboro, NJ (TEB)
