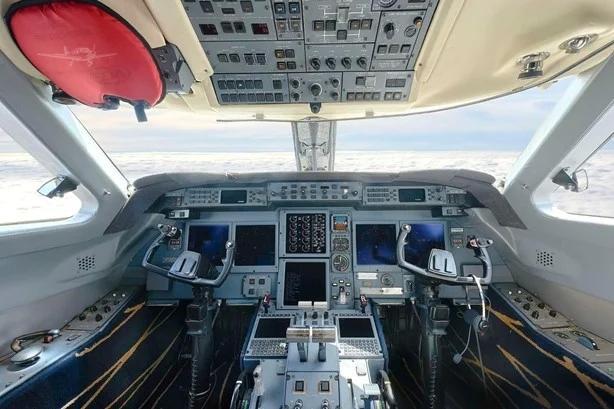

HONEYWELL PLANEDECK AVIONICS (DU885) HUD/EVS
GOGO ADVANCE L5 WIFI
FDR
UPGRADED AIRSHOW

PROGRAMS:
ROLLS ROYCE CORPORATE CARE
HAPP AVIONICS
HAPP MECHANICAL
COLLINS AVIONICS

Airframe:
Total Time: 7,686
Total Landings: 5,074

Engines:
Time: 7676/7676
Cycles: 5060/5060

COMMUNICATION TRANSCEIVERS: TRIPLE COLLINS VHF 422A/4000 W/ 8.33 SPACING
HIGH FREQUENCY COMM: DUAL COLLINS HF-9034A W/ SELCAL
NAVIGATION RECEIVERS: DUAL COLLINS VIR 432 W/ FM IMMUNITY
AUTOMATIC DIRECTION FINDER: DUAL COLLINS ADF-462
DISTANCE MEASURING EQUIPMENT: DUAL COLLINS DME-442
FLIGHT MANAGEMENT SYSTEM: DUAL HONEYWELL FMZ 2000 VER. 6.1.1 (CDU-830 DISPLAY)
GLOBAL POSITIONING SYSTEM: DUAL HONEYWELL GPS (SBAS/LPV)
INERTIAL REFERENCE SYSTEM: TRIPLE HONEYWELL LASEREF IV
COLLISION AVOIDANCE SYSTEM: HONEYWELL TCAS II W/ CHANGE 7.1
TERRAIN AWARENESS SYSTEM: HONEYWELL MARK V EGPWS W/ WINDSHEAR
TRANSPONDER: DUAL COLLINS TDR-94D MODE S W/ ENHANCED SURVEILLANCE
RADAR: HONEYWELL PRIMUS 870 W/ DUAL CONTROLS
RADIO ALTIMETERS: DUAL HONEYWELL RT-300
EMERGENCY LOCATOR TRANSMITTER: ARTEX C406 MHZ ELT
COCKPIT VOICE RECORDER: L3 FA2100
FLIGHT DATA RECORDER: L3 P/N 91005-0031122
SATCOM: AIRCELL AXESS II IRIDIUM SATCOM SYSTEM
HEADS UP DISPLAY: HONEYWELL HG-200 HEADS UP DISPLAY
ENHANCED VISION SYSTEM: HONEYWELL ENHANCED VISION SYSTEM

2024
SIXTEEN (16) PASSENGER CONFIGURATION

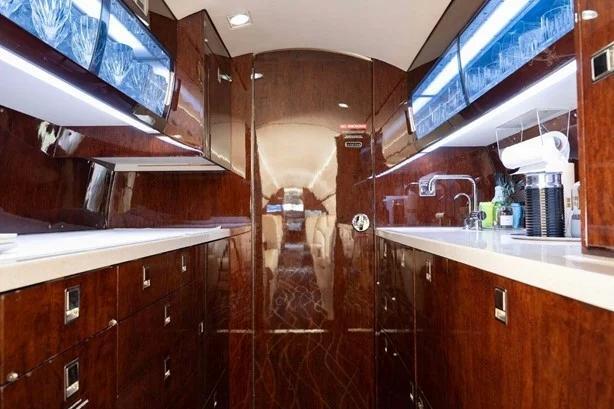

AFT GALLEY/FWD SMALL GALLEY

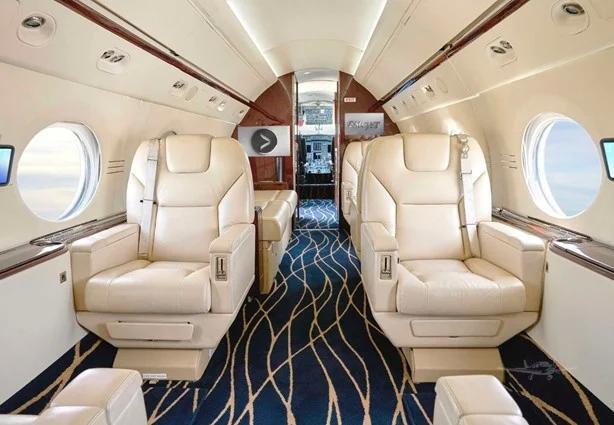

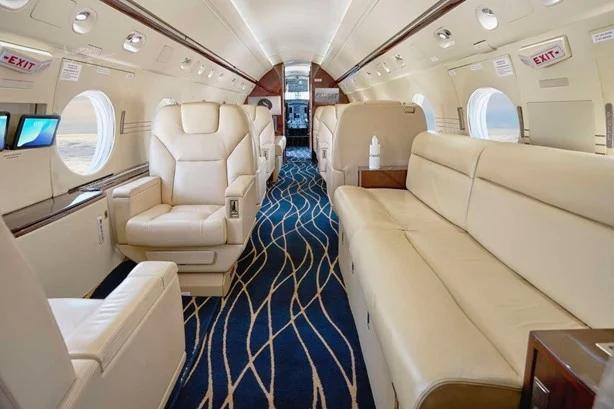

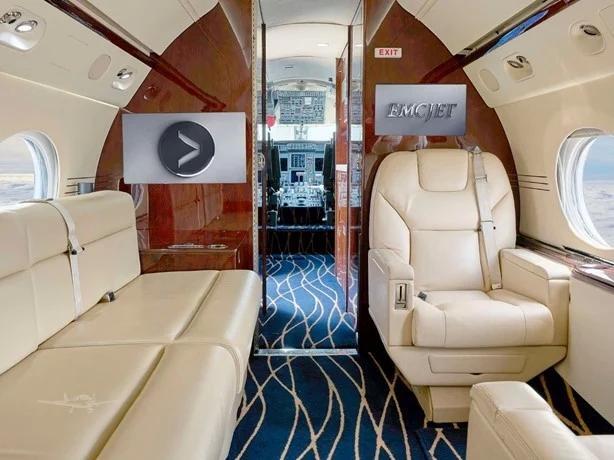

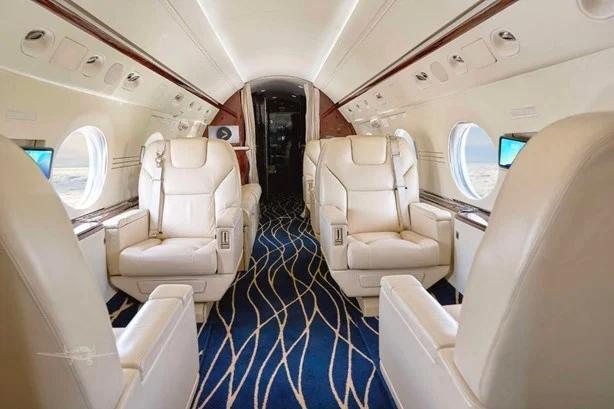

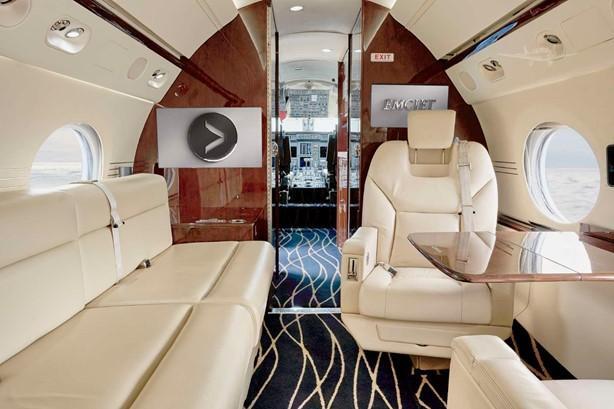

FORWARD 4 PLACE DIVAN OPPOSITE A 2 PLACE CLUB, 2 FOUR PLACE CLUBS. COCKPIT JUMPSEAT.
GALLEY EQUIPMENT: MICROWAVE, COFFEE MACHINE
LAST REFURBISHED DATE: 2020 & 2024

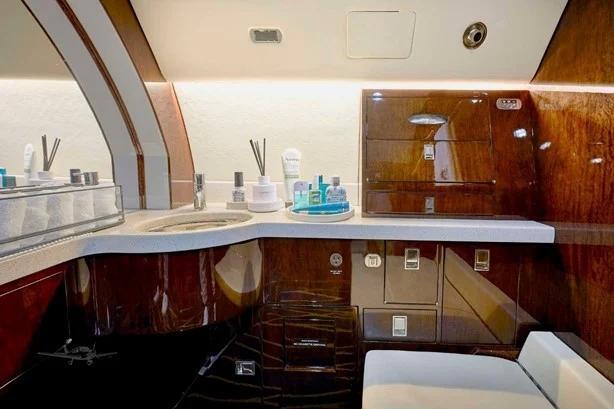

FWD & Aft Lavatories

ENTERTAINMENT:
HONEYWELL AIS 2000 SAT TV, GOGO L5 WIFI, 3 LCD BULKHEAD MONITORS, DVD/CD PLAYER, AIRSHOW GENYSES DISPLAY. COMPLETE AIRSHOW UPGRADE, 24 LARGE MONITORS, 10 PLACE IPADS INCORPORATED TO CONTROL CABIN LIGHTS, SHADES, TEMPERATURE, TV MONITORS, SATELLITE LIVE TV, INCORPORATED PLEX MOVIE SERVER WITH OVER 3000 MOVIES AND TV SHOWS, PLAYSTATION 5, AND BLUETOOTH ALTO SPEAKERS SYSTEM.

2018

GOGO ADVANCE L5 WIFI
HONEYWELL SATELLITE TV
HUD/EVS
FANS 1/A+
TRUE NORTH TN1007-100 DATALINK
XM WEATHER
ADS-B OUT VERSION 2.0
SBAS/LPV
ELECTRONIC CHARTS
COCKPIT PRINTER
L3 STANDBY ATTITUDE INDICATOR DISPLAY
HONEYWELL DL-1000 DATA LOADER
LIGHTNING SENSOR SYSTEM
HONEYWELL MSP (AVIONICS, MECHANICAL, APU)
COLLINS AVIONICS SERVICE PROTECTION (CASP)

Remarks:
CMP MAINTENANCE TRACKING
CB228 HORIZONTAL STABILIZER INSPECTION C/W JUNE 2020
12 MONTH CHECK C/W 2024, DUE 2025
24 MONTH CHECK C/W 2024, DUE 2026
96 MONTH CHECK C/W 2022, DUE 2030
192 MONTH CHECK C/W 2014, DUE 2030
