Airframe Landings: 1,900Time/Landings as of 16 October 2025


Engines Engine Program: Rolls-Royce CorporateCare Enhanced

Loc.
Make
Model
Serial#
TSN
CSN


L
Rolls-Royce Deutschland
TAY611-8C
85415
4342
1884


R
85416
4342
1884


Times/Cycles as of 16 October 2025APU Honeywell 36-150[GIV], S/N: P-310, TTSN: 2653 Hours, Plan: Honeywell MSP Gold, Time as of 16 October 2025

Gulfstream PlaneView Flight DeckPlan: Honeywell MSP Avionics (coverage paid through 15 Jul 2026) & Rockwell Collins CASP (coverage paid through 17 Aug 2026)EFIS: Four (4) Honeywell DU-1310 Display Units (No. 1, No. 3 & No. 4 are P/N 60003040-903)HUD/EVS: Honeywell/Kollsman Head-up Display and Enhanced Vision SystemFMS: Triple Honeywell Flight Management Systems with LPV and Dual SBAS/WAAS GPSCDU: Triple Honeywell Multifunction Control Display Units (MCDU-R) VHF COM: Triple Honeywell VHF Communication TransceiversHF COM: Dual Collins HF Communication Systems with SELCALSATCOM: Aircell Axxess II Iridium and Honeywell Inmarsat Satellite Communications SystemsDATA: Gogo AVANCE L5 Wi-FiDATALINK: Honeywell Communications Management Function (CMF) with FANS 1/A+ CPDLCLRNAV: Triple Honeywell Laseref V Micro Inertial Reference UnitsNAV: Dual Honeywell Navigation Modules with Dual ADF ModulesWX: Honeywell Primus 880 Weather Radar SystemRADALT: Dual Honeywell Radio AltimetersTAWS: Dual Honeywell EGPWS ModulesACAS: ACSS TCAS 3000SP (TCAS II) with Change 7.1XPNDR: Dual Honeywell Mode S Transponders with ADS-B OutFDR: Universal Avionics Solid-State Flight Data RecorderCVR: Universal Avionics Solid-State Cockpit Voice RecorderELT: Artex C-406N Transmitter

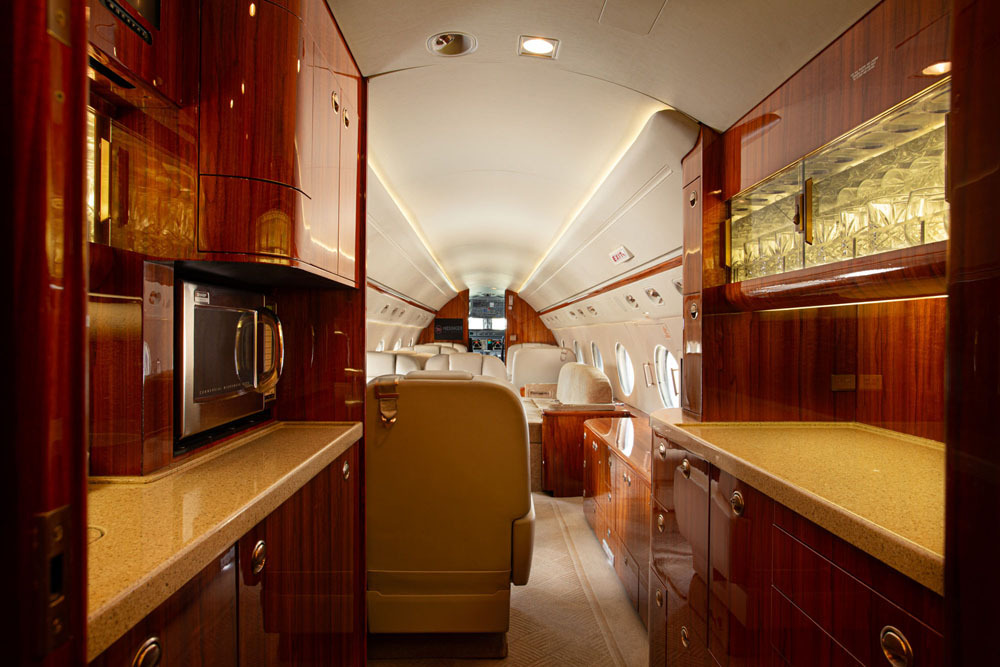

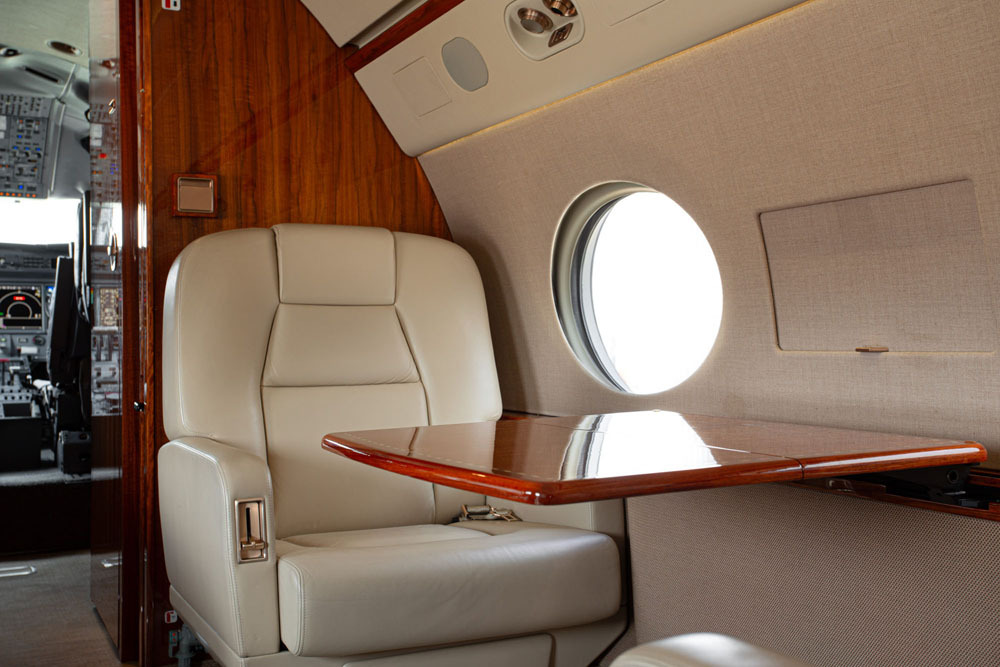

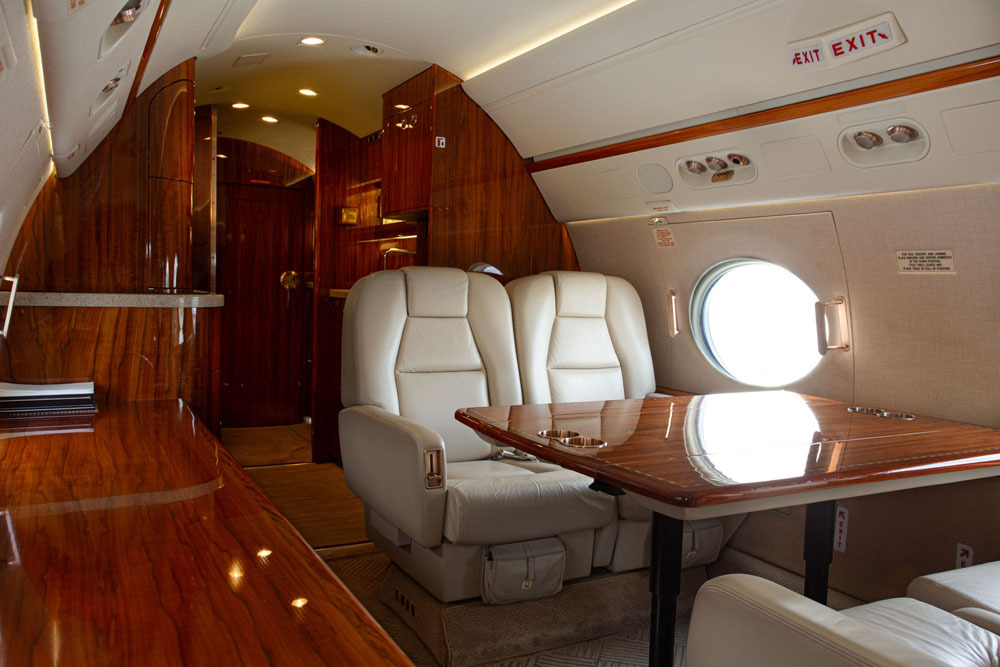

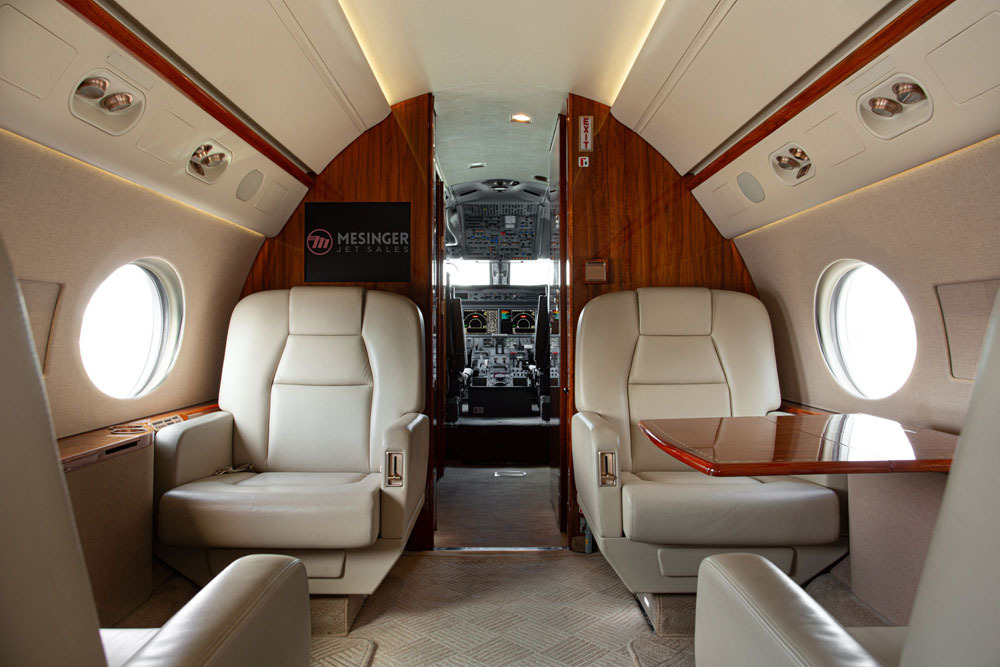

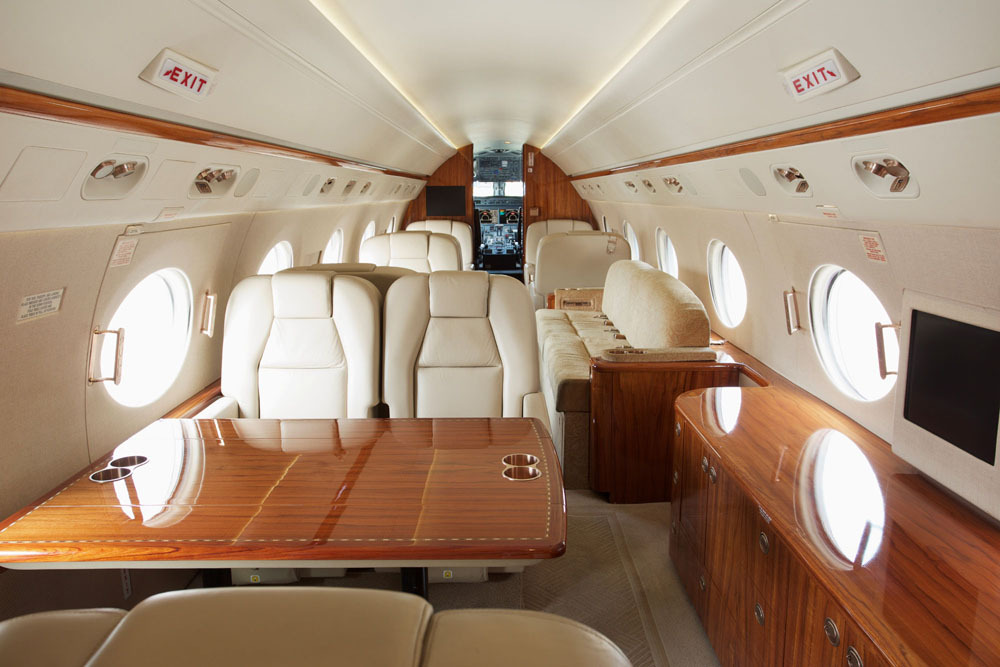

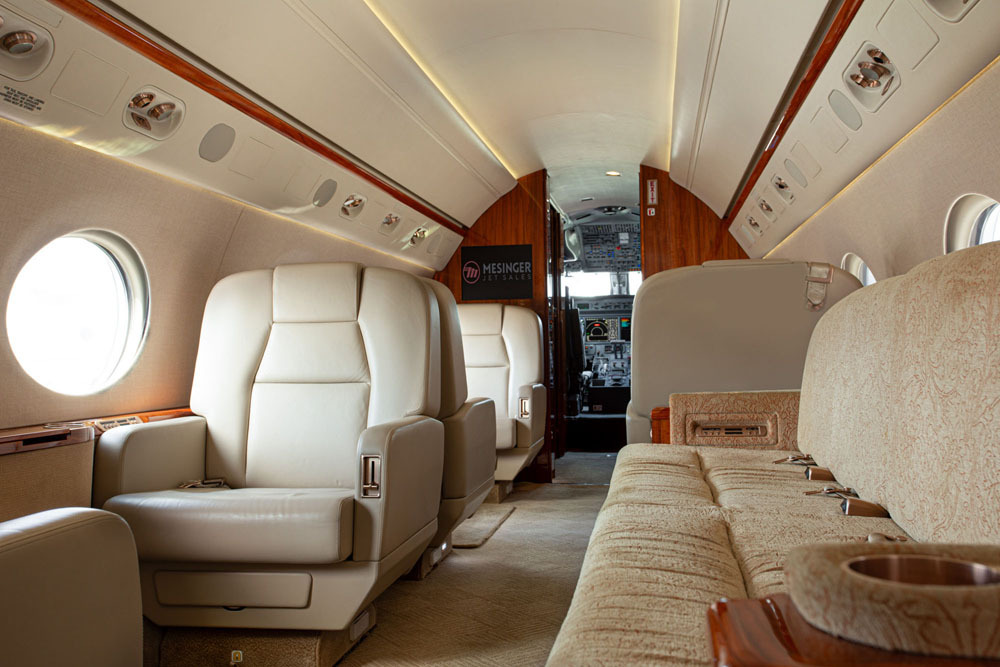

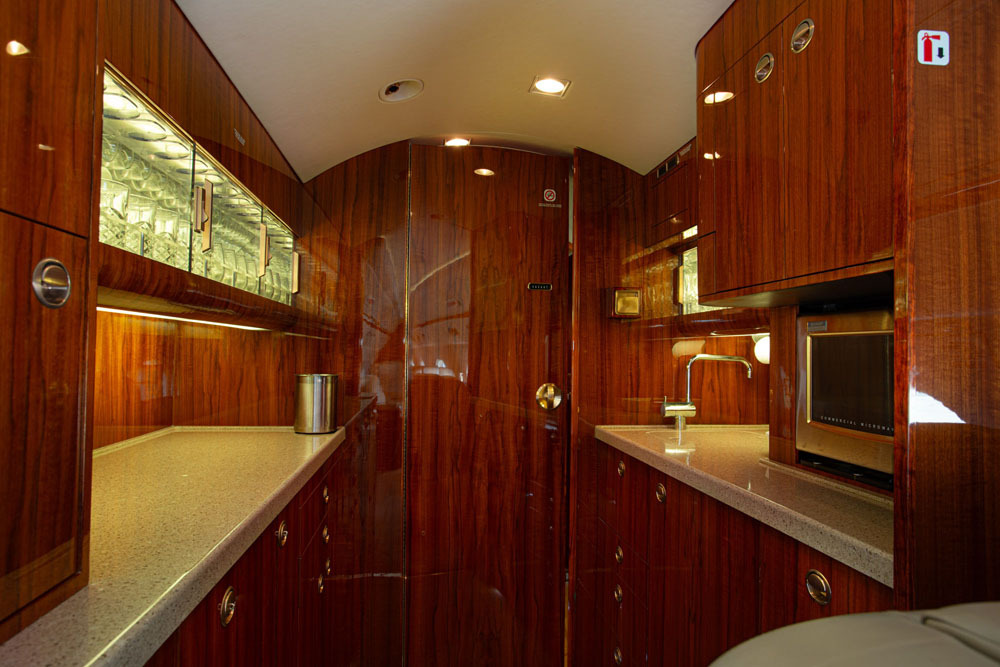

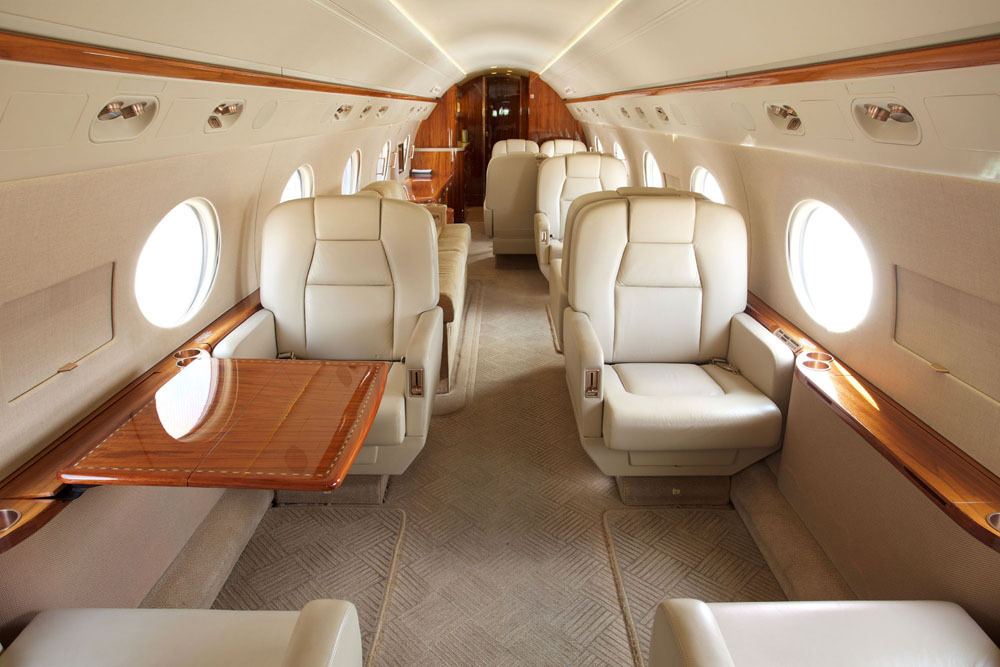

Passenger Seating Capacity: Fourteen (14)Jump Seat: Yes Crew OnlyConfigurationThis Gulfstream G450 features a 14-passenger aft galley configuration with enhanced soundproofing, forward and aft lavatories, and an in-flight accessible baggage compartment. The cabin consists of a forward 4-place club, a mid-cabin lefthand 2-place club opposite a 4-place divan, and an aft lefthand 4-place conference group opposite a credenza. The forward cabin features a bulkhead with pocket door.Seating, Storage & MiscellaneousThe main cabin 28 wide single seats feature footrests and berthing capability (limited by surrounding structures), and the 76 divan has manual berthing capability. The credenza features two (2) gasper-cooled dual sliding drawer Wine/Liquor bottle compartments. There are 115V/60Hz outlets throughout the cockpit and cabin, and the main cabin features electrically operated window shades with diffused and darkening functions.Cabin Management & EntertainmentThe cabin management and entertainment system equipment includes a forward cabin bulkhead 20 LCD Monitor, credenza 17 LCD monitor, and six (6) 7 personal LCD monitors, galley touchscreen control panel, Airshow 4000, and an external camera system.Communications & DataAn Aircell Axxess II Iridium telecommunications system and a Honeywell Inmarsat Satcom System are interfaced to provide satellite voice calling. Wi-Fi internet is accessible via Gogo AVANCE L5.Interior FinishesThe interior features Flame Makore gloss Veneer, satin gold decorative hardware plating, and Astral Pearl quartz/acrylic countertops. Kalogridis Mushroom, Wood & Stone custom wool carpet is installed in the main cabin, and the vestibule and galley areas feature Chilewich Reed-Sandbar Plynl composite flooring. The cabin headliner/PSU is covered in Doe Ultraleather, the upper sidewalls are finished in color-coordinating fabric, and the lower sidewalls are covered in Jerry Pair fabric. The cabin single and double seats are finished in Velluto Pelle-Kitty Hawk leather, and the divan is covered in Armarige-Truffle fabric.Aft GalleyThe galley features dual TIA coffee makers, a microwave, and an Enflite oven. There are also two countertops, a countertop extension, sink with faucet, gasper-cooled food storage compartment, dual ice drawers, and multiple drawers and storage compartments. A vestibule crew refreshment compartment includes a hot liquid container and ice drawer. Lavatories: Forward & AftBoth lavatories feature a vacuum flushing toilet and vanity with sink and faucet.Baggage CompartmentThere is an in-flight accessible baggage compartment aft of the aft lavatory.

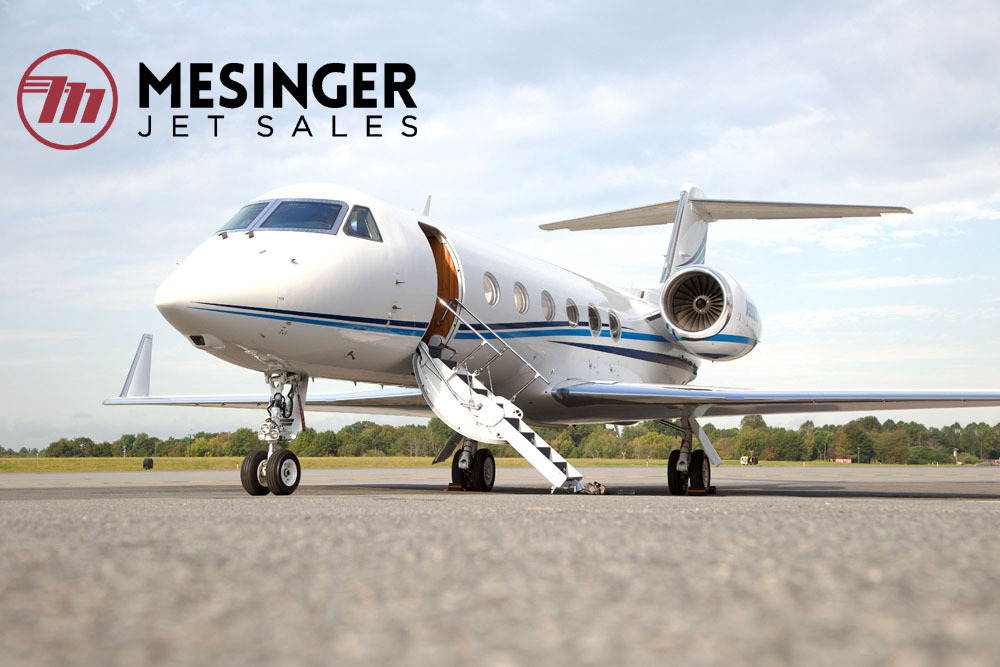

Repainted by Duncan Aviation Lincoln in August 2023, the exterior is painted Matterhorn White with Dark Blue and Medium Blue stripes.

Plan: Honeywell MSP Mechanical (coverage paid through 15 Jul 2026)
