Type: One
Model: G750
Manufacturer: Gogetair
Serial Number: G011
Year of Production: 2024
Registration: S5-MMW
TTAF: 134.8
Registration Entry: 37230-15/2024
Location: Switzerland

Turbocharged 4-cylinder, 4-stroke engine with liquid and air cooling, opposed cylinder configuration, and dry sump forced lubrication system with separate 3L oil tank. Equipped with redundant electronic fuel injection and ignition, eco mode, dual electric fuel pumps, integrated engine management system (EMS), electric starter, and reduction gearbox. Swiss VAT of 8.1% included.

Airplane time state:
TTAF: 134.8
Engine
Type: ROTAX 915 iS 3
Number of Engines: 1
Manufacturer: Bombardier-Rotax GmbH
Takeoff Power: 140 HP (104 kW) max 5 min
Max Continuous Power: 133 HP (99 kW) @ 5,500 RPM

Propeller
Manufacturer: MT-Propeller Entwicklung GmbH
Model: MTV-34-1-A/175-200
Number of Blades: 3
Pitch: Hydraulic, in-flight adjustable

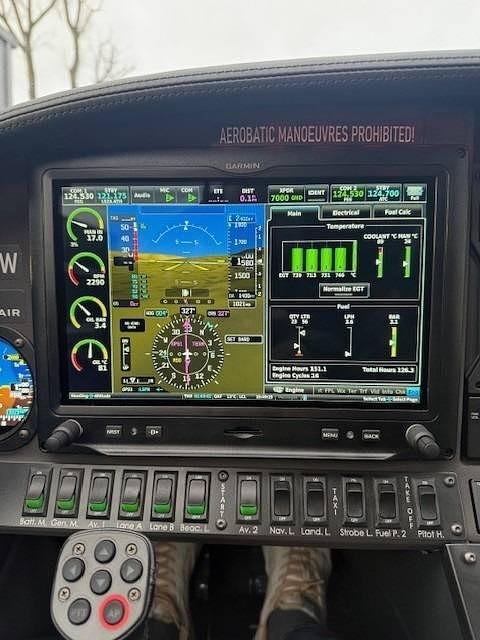

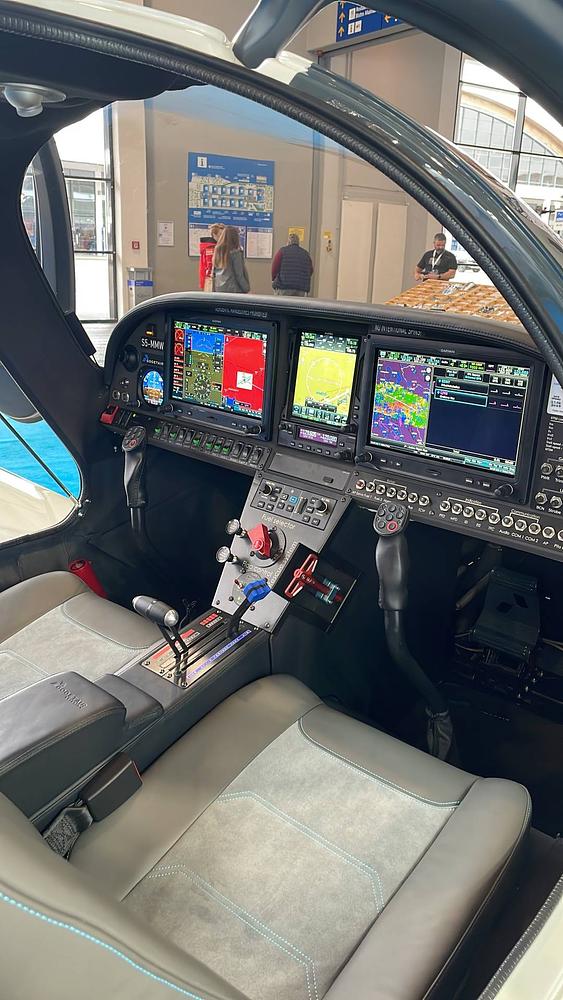

Primary Flight Display (PFD1 Main): Garmin G3X 010-01057-00, S/N: 350012588
GDU 460/465 Install Kit: Garmin G3X 010-12150-00
PFD1 Backup Battery: IBBS 12V-3Ah 202210825
PFD2 Backup: Garmin G3X 010-01057-00, S/N: 350012592
Central GPS/COM/NAV: Garmin GTN 750Xi 010-02002-01, S/N: 5FR007271
Autopilot: Garmin GMC 507 010-01946-00, S/N: 5H1100565
AP Servo Pitch / Roll: Garmin GSA 28 010-01068-20
Radio / COM: Garmin GTR 225A 010-02486-50, S/N: 44V002979
Audio Panel: Garmin GMA 245R 010-01471-01
Transponder: Garmin GTX 45R 010-01757-01, S/N: 4YC040903
Traffic System (ADS-B / FLARM): LXNAV Power Mouse S/N: 1553
ELT: Artex ELT 345 A3-06-2880, S/N: 398419-032
Pitot Tube: Garmin GAP 26, 12V Heated 010-01074-20, S/N: 34F700680
Airborne Weather Devices: Golze Engineering ADL190 & ADLRS232
Engine Indication System: Garmin GEA 24 010-01042-00, S/N: 2J2022487
GPS Antennas: GA35 & GA56 Low Profile S/N: 211905 / 59442914
VHF / COM & NAV Antennas: Rami CI-121, AV-10, AV-525, AV-22, AV-200
Headset Install Connector Kit: Bose LEMO 323172-0010
Marker Beacon / Antenna Coupler: Rami AV-64 / AV-547

Fuel & Oil
Fuel Tanks: 2 (wing leading edge)
Total Capacity: 144 L (38 US gal)
Usable Fuel: 136 L (36 US gal)
Oil Tank Capacity: 3.5 L (0.92 US gal)
Dimensions
Wingspan: 9.65 m (31 ft 8 in)
Wing Area: 11.9 m (128 ft )
Aspect Ratio: 7.8
Length: 6.98 m (22 ft 11 in)
Height: 2.21 m (7 ft 3 in)
Mean Aerodynamic Chord (MAC): 1.21 m
Weights & Loading
Max Takeoff Weight: 750 kg (1,653 lbs)
Max Front Seat Load (each): 100 kg (220 lbs)
Baggage Cargo Area 1: 50 kg (110 lbs)
Baggage Cargo Area 2: 25 kg (55 lbs)
Wing Loading: 63.03 kg/m
Power Loading: 6.52 kg/HP
Cabin & Baggage: Dual side doors with central lock. Cargo area 2 accessible via fuselage door behind pilot (left side). Max baggage 25 kg.

Options / Extras
Lighted instrument panel 11-05224
2x Ceiling lights (EyeBeam RGBW) AVE-EBBPS-00T / AVE-EBBA31-1605-00984 / A15-12
Beacon light on rudder (AirBurst NG DayLite) AVE-ABSYR-D01, S/N: 49201-2205-00002
Front & rear facing camera Bawaqaf RVC
Windshield heating Gogetair GGA-VH1
Built-in O2D2 2-place oxygen system MH Oxygen
AH501 Master Caution / Master Warning Pushaero, S/N: 23PRI00806
Battery connector for charging 12V TBD
Oil thermostat 915 RS-Flight Systems, SKU 10-366, S/N: 1.23.07.023
USB Charger GSB 15 Garmin, S/N: 63M254364
