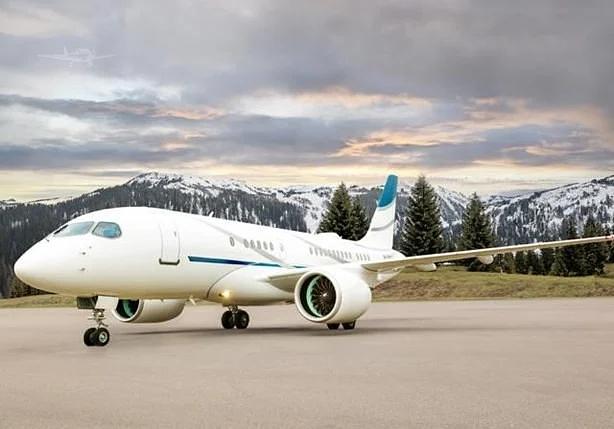

JetHQ is pleased to present this 2022 Airbus ACJ220 featuring an exceptional 18 Passenger VVIP Configuration. This one-owner aircraft combines intercontinental range, cutting-edge connectivity, and a six-section luxury interior complete with a private suite and full standing shower.

HIGHLIGHTS:
Ku-band High Speed Wi-Fi Connectivity
Cabin Upgrades: 8-Person Dining & Humidifier
6-Section Interior Configuration for 18 Pax
VIP Lavatory w/ Full Standing Shower

ADDITIONAL FEATURES:
Collins Pro Line Fusion
FANS-1/A+ (CPDLC, ADS-C)
Autoland Cat IIIB Capability
ADS-B Out
WAAS/LPV
HUD Provisions
One Owner Since New

Airframe:
Total Time: 977
Total Landings: 239

Engines:
Time: 977/977
Cycles: 239/239

APU:
Honeywell 131-9 (C) P-337
Total Hours* 880
Total Starts* 592

COLLINS PRO LINE FUSION

ADF: Dual Collins NAV-4000
AP/FD: Dual Collins IFCS
COMMS (HF): Dual Collins HF-9031A w/ SELCAL
COMMS (VHF): Triple Collins VHF-4000
CVR: Single L3 FA5000 SSCVR
DME: Dual Collins DME-4000
EFIS: Quintuple Collins AFD-6510 Adaptive Flight Displays
FDR: Single L3 FA5000 SSFDR
FMS: Triple Collins FMC-6200
GPS: Dual Collins GPS-4000S
IRS: Triple Honeywell IR-600 Laseref VI
NAV: Dual Collins NAV-4000
RAD ALT: Triple Collins ALT-4000
TAWS: Dual Collins TPM-6000 EGPWS
TCAS: Single Collins TSS-4100 TCAS-II w/ ch. 7.1
WX RAD: Single Collins RTA-4218
XPDR: Dual Collins TDR-94D (Mode S)

AESTHETICS:
Colors: White, Beige, Brown & Blue
Condition: Original 2022

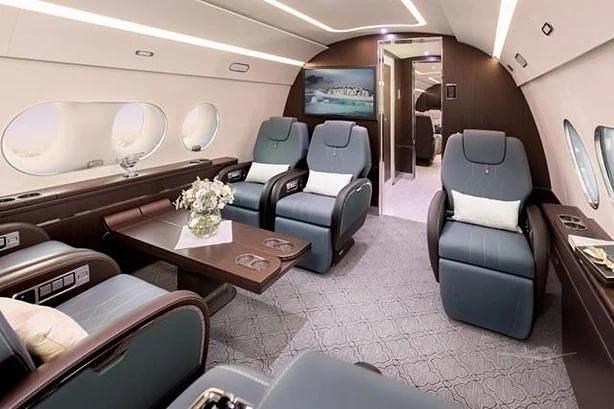

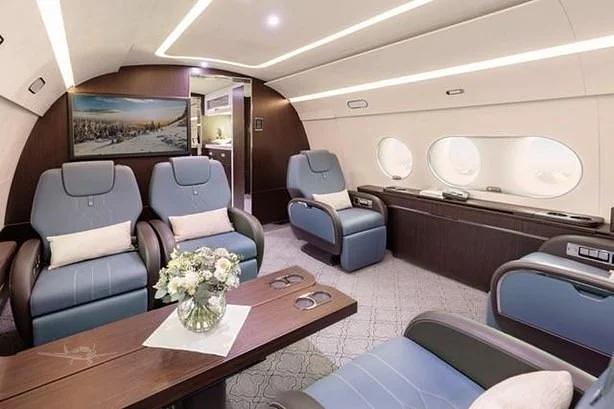

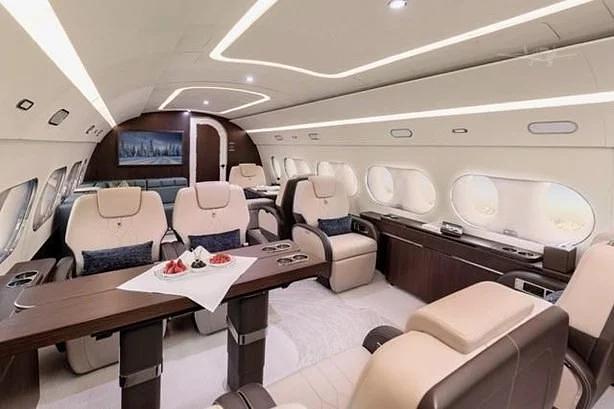

DAY CONFIGURATION LAYOUT:
Eighteen (18) Passenger VVIP Seats

Seating:
Section 1:
Galley, Bar Area, Crew Lavatory & Storage

Section 2:
Sliding Door Between Entrance & Fwd Seating Area
Two (2) Manual Crew Rest Seats
VIP Lavatory
Curtain Between Fwd Seating Area & Fwd Lounge
One (1) Manual Club Opposite Four (4) Place Table
Each Side Ledge Has Cup Holders w/Built-In Phone Slot
Six (6) Seats Opposite Two (2) TTOL Seats

Section 3 Dining Area:
Sliding Pocket Door Between Forward Lounge
Secondary Equipped Galley & VIP Lavatory
One Electrical Club Opposite Four (4) Seats w/ Hi-Low Table
Each Side Ledge Has Cup Holders w/Built-In Phone Slot
Six (6) TTOL Seats

Section 4 Guest Lounge:
One L-Shape Divan w/ Three (3) TTOL Positions
Two Additional Ottomans for Conversion of Divan into Bed
Electrical Club Opposite Two (2) Seats w/ Fold Out Tables
One (1) TTOL Seat
Four (4) TTOL Seats

Section 5 Private Suite:
Pocket Door Between Guest Lounge & Private Suite
LH Three (3) Place Berthing Divan (non TTOL)
RH Three (3) Place Divan (Non TTOL) w/ Fold Out Extension
Side Tables w/ Custom Cup Holders & Built-In Phone Slots
No TTOL Seats

Section 6 En Suite Bathroom:
Swing Door Between Private Suite & Bathroom
VIP Lavatory w/ Full Standing Shower
No TTOL Seats

NIGHT CONFIGURATION LAYOUT:
Twelve (12 ) Full Sleeping Positions + Two (2) Reclining Seats

Seating:
Section 1:
No Sleeping Position Area

Section 2:
Two (2) Reclining Seats 130
Three (3) Full Lie-Flat Sleeping Positions

Section 3:
Three (3) Full Lie-Flat Sleeping Positions

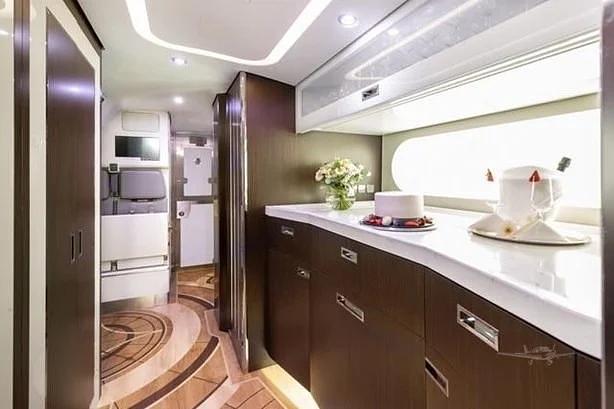

GALLEY:
Equipment:
Primary Galley (Section 1): Steam Convection Oven, Chiller, Sink, Two (2) Beverage Makers, Upper Storage & Ice Drawer w/ Drain System
Secondary Galley (Section 3): Sink, Refrigerator, Upper Storage & Ice Drawer w/ Drain System

Section 4:
One (1) Full Lie-Flat Sleeping Position
One Double Bed (46 x 72 ) for Up to Two (2) Sleeping Positions

Section 5:
One (1) Full Lie-Flat Sleeping Position
One Double Bed (47 x 79 ) for Up to Two (2) Sleeping Positions

Section 6:
No Sleeping Position Area

CONNECTIVITY & ENTERTAINMENT
High Speed Ku-band Internet
One (1) 4K Monitor (55 ) in Section 5
Four (4) 4K Monitors (43 ) in Section 3 & Section 4
IFE Audio System Controlled by CMS Touch Screen Panels
Seat-Side Induction Chargers, Outlets, & USB-C Ports
iPad Holders & Noise-Cancelling Headphones at each TTOL Location

AESTHETICS:
Base Paint: White
Accent Colors: Gray & Blue
Condition: Original 2022

ATTITUDE HEADING COMPUTER: Single Collins AHC-3000
AIR DATA COMPUTER Quadruple Collins
AUDIO CONTROL PANEL: Triple Collins ACP-6000
CURSOR CONTROL PANEL: Dual Collins CCP-6000
DATA CONCENTRATOR MODULE: Triple Collins DCM-6000
ELT: Single Honeywell Rescu 406AFN
ESIS: Single Collins SFIS-3900
INTEGRATED PROCESSING CABINET: Quadruple Collins IPC-6220
MULTIFUNCTION KEYBOARD: Dual Collins MKP-6000
RADIO INTERFACE UNIT: Dual Collins RIU-4010; RIU-4110

ADDITIONAL FEATURES:
FANS-1/A+ (CPDLC, ADS-C)
ILS Cat. III Certified
Autoland Cat. IIIB Capability (No D.H.)
ADS-B Out
Vertical Weather Radar
WAAS/LPV
ETOPS 180 Min.
RNP 0.3 | RNP/GSSS 1-10 | NAT HLA
Electronic Charts
HUD Provisions
CPDLC Dual Stack

Remarks:
MAINTENANCE:
INSPECTION - COMPLIED WITH - NEXT DUE
6 Month (1A) May-26 Nov-26
12 Month (2A) May-26 May-27
18 Month (3A) TBC TBC
24 Month (1C) Dec-25 Dec-27
36 Month (6A) - Dec-27
48 Month (2C) - Jan-28
6 Year / 72 Month (4C) - Jan-30
12 Year / 144 Month (8C) - Jan-36
Landing Gear OH (144 M) - Dec-34
